The Real-World Situation

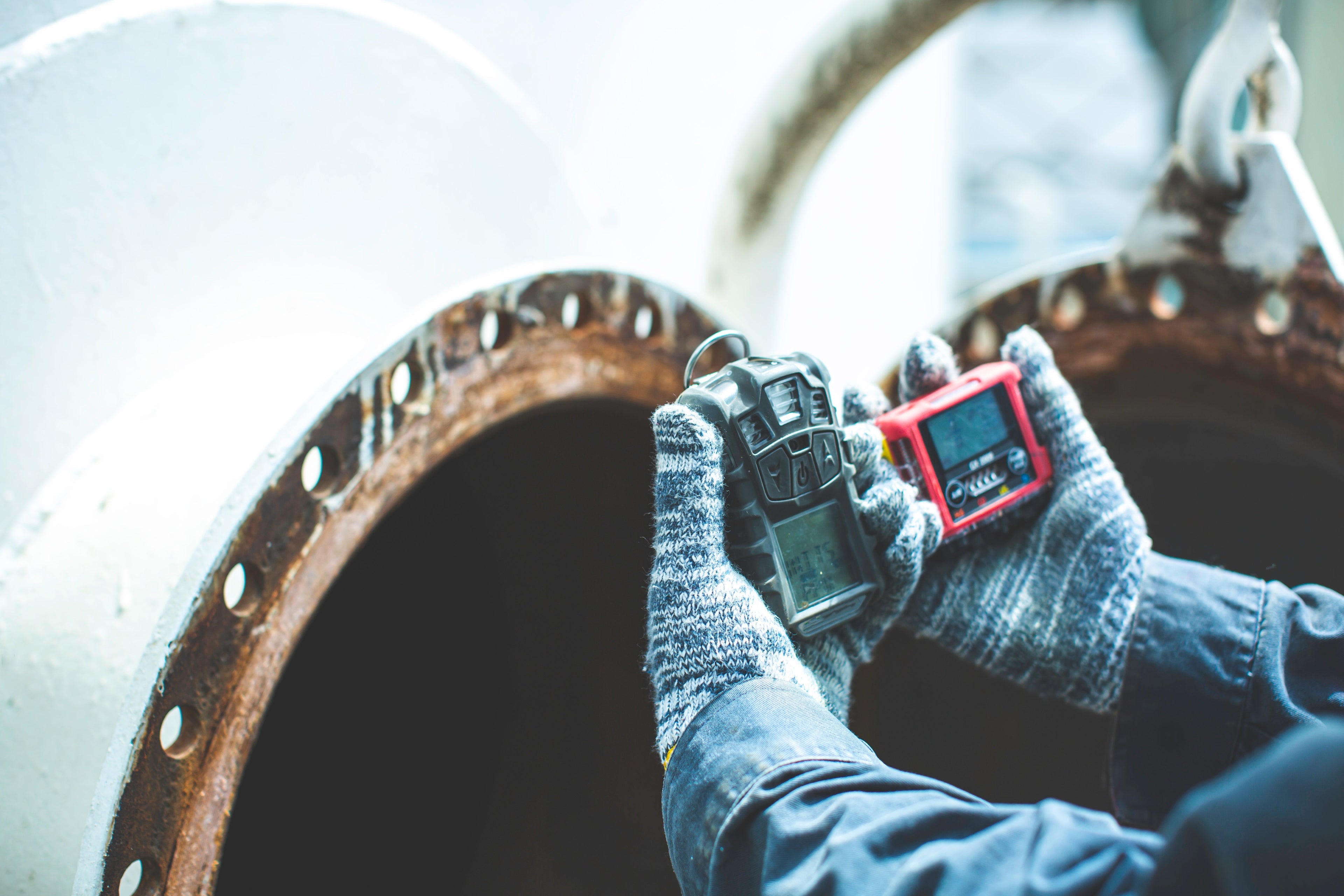

You’re at a typical morning pre-entry briefing at a Gulf Coast refinery turnaround, a municipal wastewater lift station in the Midwest, or an oilfield tank battery in the Permian Basin. The attendant lowers the four-gas detector into the manhole or vessel. Within minutes it alarms—LEL creeping up or H2S reading 15 ppm. The crew’s immediate response? Grab the SCBAs, check the bottle pressures, and head in. Ventilation equipment stays on the truck or is set up only as an afterthought.
This pattern repeats every day in tank cleaning, vessel inspection, sewer maintenance, and utility vault work from Texas shale fields to Pennsylvania chemical plants. The gas detector does its job by flagging the hazard. The team then protects the individual worker with respiratory gear instead of first fixing the atmosphere itself.
Why This Environment Is Challenging and Hazardous
Confined spaces and enclosed vessels naturally collect flammable or toxic vapors. In wastewater systems you get methane from organic breakdown and hydrogen sulfide from sulfate-reducing bacteria—especially during spring high-flow periods. In storage tanks and process vessels you encounter volatile hydrocarbons, propane, or butane vapors from crude or refined products. Refineries and chemical plants add hydrogen, ethylene, and other process gases. Even “sweet” crude can surprise you after a tank has sat idle.
These atmospheres can swing from safe to dangerous in minutes. A small temperature change, a shift in liquid level, or residual product can push concentrations into the flammable range. Oxygen can drop below 19.5 %. And once you’re inside, any spark from a tool, static discharge, or non-rated equipment can turn a monitored space into a disaster.
The Terminology You Commonly Hear on Site
Crews talk about “air packs,” “bottle breathing,” SCBAs, airline respirators, or “cartridges” for half-face units. Ventilation gets mentioned as “blowers,” “saddle vents,” “positive-pressure ventilation,” “ducting,” or simply “let’s vent the space first.” When things get technical you’ll hear Class I Div 1, Group D, T3, or Zone 1 IIC T4—labels that sound intimidating until you translate them into everyday meaning.
What the Technical Designations Actually Mean in Plain English
In North America the NEC system is the everyday language. Class I means flammable gases or vapors are the concern. Division 1 says ignitable concentrations can exist under normal operating conditions; Division 2 says they’re not expected but could appear during a leak or upset. Gas Groups narrow it further: Group D covers everyday hydrocarbons like propane, methane, and many crude vapors you meet in tank work and wastewater; Group C handles ethylene or hydrogen sulfide common in refineries and sour-gas areas.
The T-rating (temperature class) simply tells you the hottest surface temperature the fan is allowed to reach so it won’t ignite the gas. T3 or T4 is typical for most field jobs.
These markings are not paperwork—they’re the difference between equipment you can safely run inside a vapor cloud and equipment that could become the ignition source itself.
How to Think About the Hazard in Practical Terms
A gas detector reading is not just a warning for the worker’s lungs. It is a clear signal that the entire atmosphere is potentially flammable or toxic. Respirators protect the person wearing them, but they do nothing to lower vapor concentrations, prevent ignition, or make the space safe for the attendant outside or a rescue team.
Standard confined-space thinking puts engineering controls—ventilation—ahead of personal protective equipment. Diluting and removing the gas at the source reduces LEL to under 10 %, brings toxic readings into the safe zone, and often lets the crew use lighter respirators or none at all. It also cuts heat stress, improves visibility, and gives everyone more working time.
What Type of Equipment Is Generally Appropriate
When the detector says the atmosphere needs watching, bring a fan that is built for the same environment. Hazardous-area certified axial or centrifugal blowers are designed exactly for this. They move enough air to achieve the required air changes per hour while their motors, switches, and blades stay ignition-free.
Common Mistakes and Misunderstandings to Avoid
- “We’re only going in for 20 minutes.” Limited SCBA air often runs out before the job does, especially when unexpected work appears.
- “The fan is just for fresh air—we don’t need explosion-proof.” If the detector is alarming, the space is already hazardous; a standard fan motor can become the spark.
- “Ventilation takes too long to set up.” Ten minutes of proper blower setup can eliminate the need for heavy breathing gear and extend safe working time dramatically.
- Treating respirators as the primary solution instead of the backup.
A Practical Takeaway
Anytime your gas detector is required for entry, treat certified ventilation as required too. Set up the fan and ducting first, purge the space, re-test, then decide on respiratory protection. This order of operations is how experienced crews keep jobs moving safely and keep people out of heavy gear when possible.
Equipment Considerations
Air
Hazardous-location certified fans and blowers are the core solution here. Look for axial flow units for straight-through high-volume movement or centrifugal blowers when you need higher static pressure to push air through long duct runs. Pneumatic (air-driven) models are popular because they eliminate electrical ignition sources entirely and run off site compressed air. Electric models work well when paired with matching hazardous-area power but must carry the exact Class, Division, Zone, Group, and T-rating for the job. Anti-static ducting is essential—static buildup in ordinary hose has caused ignitions in the past.
Power
Electric certified fans need portable power that matches the hazardous rating of the fan itself. Many teams use certified portable generators or power-distribution boxes rated for the same Class I or Zone 1 location. Pneumatic fans sidestep this issue completely but require adequate compressor capacity on site, which--due to the inefficiency of pneumatic motors--can be quite large, noisy, and expensive.
Light and heat rarely drive the decision in these scenarios but often come along once the atmosphere is stabilized—explosion-proof task lighting inside the space and, in cold-weather northern sites, temporary certified heaters to keep crews comfortable during extended entries.
What to Verify Before You Select Equipment
Before you put any fan on the truck, confirm three things match your exact situation:
- The area classification—Class I Division 1 or 2, or Zone 1/2, the correct Gas Group for the vapors you expect (D for most hydrocarbons and methane, C when hydrogen sulfide or ethylene is likely), and the T-rating.
- Airflow needs—calculate or estimate the space volume and target air changes per hour. Most tank and manhole jobs need 500–2,000 CFM depending on size and duct length.
- Power source and site conditions—will the fan run on electric or pneumatic? Is the duct run straight or does it need multiple bends that reduce flow?
Also check that the fan is approved for the specific jurisdiction (U.S. NEC vs. Canadian CEC, for example) and review the manufacturer’s data plate and instructions for your exact gases. The competent person on site should make the final call, but having the right markings up front prevents last-minute scrambles.
Good industrial safety starts by controlling the atmosphere, not just protecting the worker inside it. Making a hazardous-area certified fan a standard companion to every gas detector is one of the simplest ways North American crews can reduce risk, cut fatigue, and get the job done right the first time.
